Lumber Sawing Machine Vertical Band Saw Machine with carriage For Sawmill Wood Cutting

Place of Origin : Shandong Province, China

Brand Name : SH

Certification : ISO9001

Model Number : MJ3310-Z5000,MJ3310-Z3000, MJ3310-D5000, MJ3212-5000

MOQ : 1 SET

Price : US $6,000 - 50,000 / Set

Packaging Details : container loading

Delivery Time : within 20days

Payment Terms : T/T or L/C at sight, Western Union

Supply Ability : 1000sets/year

Name : China vertical band sawmill

Condition : New

Type : Vertical band saw

application : cut logs into planks, lumber

max. sawing log diameter : 1000mm

max. sawing log length : 6meters or as cutomer needs

Power(W) : 30kw to 50kw

Carriage length : 5meters

Carriage moving : Electric or frequency auto feeding

Opertion : electric button or CNC digital controlling

Warranty : 12 months

After-sales Service Provided : Engineers available to service machine overseas

Contact Now

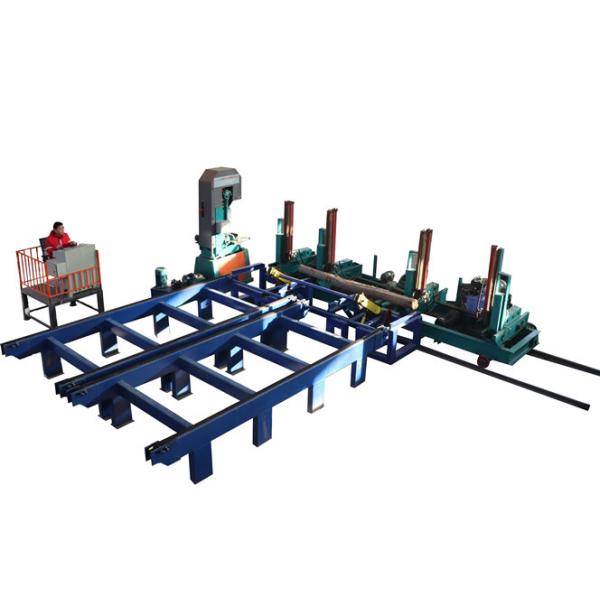

Vertical Band Sawmill With CNC Log Carriage

This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.

Technical Specifications:

Technical data	MJ3310-DD3000	MJ3310-DD5000
Saw wheel diameter	1070mm	1070mm
Maximum sawing log diameter	1000mm	1000mm
Maximum sawing log length	4meters	6meters
Main motor	30KW	30KW
Saw blade LWT	7400x150x1.05mm	6850x125x1.05mm
Carriage clip stake quantity	3sets	4sets
Wood grasp mode	Manual	Manual
Carriage walking/advance	Electric	Electric
Setting sawn size	Electric	Electric
Carriage length	3meters	5meters
Rail length	10meters	18meters
Weight	4500kgs	6000kgs

Lumber Sawing Machine Vertical Band Saw Machine with carriage For Sawmill Wood Cutting

Technical data	MJ3310-ZD3000	MJ3310-ZD5000
Saw wheel diameter	1070mm	1070mm
Maximum sawing log diameter	1000mm	1000mm
Maximum sawing log length	4meters	6meters
Main motor	30KW	30KW
Saw blade LWT	7400x150x1.05mm	7400x150x1.05mm
Carriage clip stake quantity	3sets	4sets
Wood grasp mode	Electric	Electric
Carriage walking/advance	Frequency converter	Frequency converter
Setting sawn size	PLC touching screen	PLC touching screen
Carriage length	3meters	5meters
Rail length	10meters	18meters
Weight	4500kgs	6000kgs

Lumber Sawing Machine Vertical Band Saw Machine with carriage For Sawmill Wood Cutting

Feedback from Users

Lumber Sawing Machine Vertical Band Saw Machine with carriage For Sawmill Wood Cutting

Optional parts - log loading deck

Lumber Sawing Machine Vertical Band Saw Machine with carriage For Sawmill Wood Cutting

Optional parts - Board roller conveyor

The portable horizontal band sawmill is designed to meet the requirements of customers in Africa ,South America and eastern europe.

It is simple installation,easy operation,labor saving,and high productivity.
This machine can be drived by either electric motor or diesel engine.
It is widely used by the timber processing enterprises in the virgin forests areas.

Diesel Engine Powered Horizontal Portable Band Sawmill

Technical Parameter	MJ700P	MJ1000D	MJ1300D	MJ1600D
Sawing Wood width max.	700MM	1000mm	1300mm	1600mm
Saw Wheel Diameter(MM)	600mm	700mm	700mm	700mm
Sawing Wood Thicknes	10-200mm	10-300mm	10-300mm	10-300mm
Sawing Wood Length (MM)	1300-4500	1300-4500	1300-4500	1300-4500
Engine	22HP Petrol	22HP Diesel	25HP Diesel	27HP Diesel
Band Saw Blade Length	5500mm	6100mm	6600mm	7100mm
Machine Length(MM)	5800	5800	5800	5800
Total Weight (KG)	1100	1100	1300	1500

Lumber Sawing Machine Vertical Band Saw Machine with carriage For Sawmill Wood Cutting

Optional Parts: Extend sawmill track

Lumber Sawing Machine Vertical Band Saw Machine with carriage For Sawmill Wood Cutting Images
